Landscape size Unreal, Houdini

Work In Progress / 04 November 2019

Landscape size

Unreal Engine requires very specific sizes for its landscapes, as they are broken up in sections and components for LOD /optimization purposes. The recommended sizes are:


8129 x 8129

4033 x 4033

2017 x 2017

1009 x1009

505 x 505

253 x 253

127 x 127


http://www.sidefx.com/docs/unreal/_landscapes.html

Add normal to X direction on Houdini

Work In Progress / 26 October 2019

Add normal to X direction on Houdini

@N={1,0,0}


Have to check the Attribute N


Houdini Curve modifier with VEX

Work In Progress / 26 October 2019

Houdini Curve modifier with VEX


f@gradient = (float)@ptnum / (float)(@numpt-1);

@Cd = @gradient;

@P.y += chramp("shape", @gradient);




Set the vex script on the Attribute Wrangle node and click the button as number 2, then the bottom part should become up.

Use as a curve node and it would work well.



Houdini Curve Gradient VEX

Work In Progress / 26 October 2019

Houdini Curve Gradient VEX


f@gradient = (float)@ptnum / (float)(@numpt-1);

@Cd = @gradient;




Embed file to HDA on houdini

Work In Progress / 25 October 2019

HDA Type properties/Extra Files

And Add files

After this save this HDA file




opdef:..?mountain_001.bgeo


This is how to use the embedded file as a file node.


You can find this on the Houdini document about the HDA.


Blender EEVEE working progress

Work In Progress / 22 October 2019

Blender EEVEE working progress

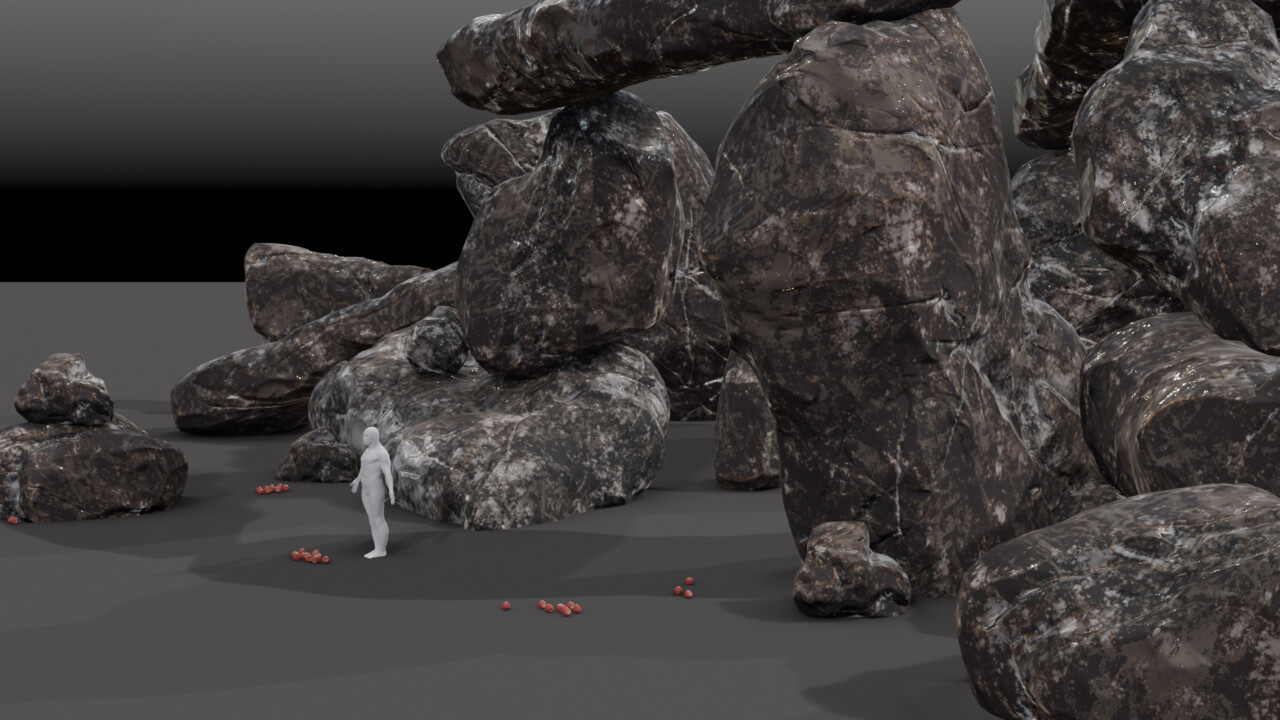

Render in Blender EEVEE
Render in Blender EEVEE

Render in Blender EEVEE
Render in Blender EEVEE
Render in Blender EEVEE

Zbrush Rock sculpture modeling high polygon

Zbrush Rock sculpture modeling low polygon

Apple color map, painted in Substance Painter

Rock color map, painted in Substance Painter

Rock Normal map, Extracted with xNormal and Substance Painter

Rock Roughness map, Extracted with xNormal and Substance Painter

Apple model shading network in Blender for EEVEE Render

Rock model shading network in Blender for EEVEE Render

Houdini Script $YMIN

Work In Progress / 19 October 2019

Houdini Script

$YMIN


on translate node Y translate field.

put the object on the 0 ground.




Houdini Attribute Wrangle Normal Vector Rotation

Work In Progress / 17 October 2019

Houdini Attribute Wrangle

Normal Vector Rotation

Rot value 3.14 is 360 degree of rotation as radian.

Houdini Normal, Left Right Veter creation vex

Work In Progress / 17 October 2019

Houdini Normal, Left Right Veter creation vex


on attribute wrangle


vector up_vector = {0, 1, 0};

@N = cross(@N, up_vector);
